Architectural Door Hinges

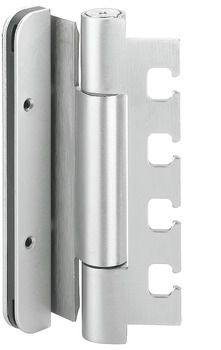

Architectural door hinge, Simonswerk VN 7939/160 FD - 924.14.703

HAFELE

Architectural door hinge, Simonswerk VN 7939/160 FD - 924.14.703 by Hafele — Ensures smooth and secure door operation.

Properties

Product Code: 924.14.703
Category: Architectural Door Hinges

Material Properties

Used Material:
Stainless steel
Durability:
High durability

Product Attribute Symbols

Dimensions

Length (cm): 16
Width (cm): 14
Height (cm): 16
Volume (cm³): 2.2

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

Güvenlik Notları--Security Notes
924.14.703_Safety notes
ISO_27001_ENG
ISO_9001_TR
ISO_9001_ENG
ISO_27001_TR

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

The Architectural door hinge, Simonswerk VN 7939/160 FD - 924.14.703 by Hafele represents a refined fusion of quality and functionality. This hinge is designed for both DIN left and DIN right-hand use, featuring a groove for continuous wing seal. Made from stainless steel, it promises durability and a long service life. The hinge supports a maximum door weight of 160 kg, making it ideal for heavy doors.

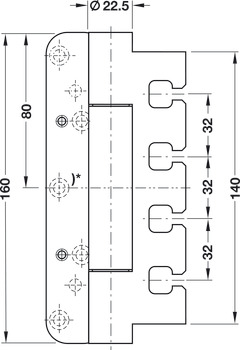

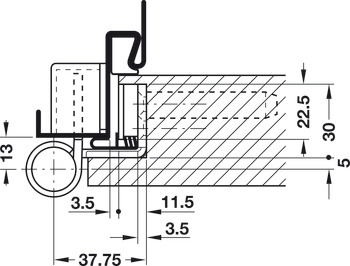

With a knuckle diameter of 22.50 mm and a flange thickness of 3.50 mm, it offers robust support. The flange height is 160 mm / 140 mm, providing a secure fit for various door types. The 12 mm radius enhances its aesthetic appeal while ensuring smooth operation.

This hinge stands out for its unique strengths, providing a reliable solution for seamless door operation.
