Butt Hinges

Butt hinge, for rebated interior doors up to 60 kg - 926.37.403

HAFELE

Butt hinge, for rebated interior doors up to 60 kg - 926.37.403 by Hafele — This hinge ensures secure opening and closing of doors.

Properties

Product Code: 926.37.403
Category: Butt Hinges

Material Properties

Used Material:
Stainless steel
Durability:
No Information

Product Attribute Symbols

Dimensions

Length (cm): 14
Width (cm): No Information
Height (cm): 14
Volume (cm³): 1.6

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_9001_TR
ISO_9001_ENG
926.37.403_Safety notes
ISO_27001_ENG
Güvenlik Notları--Security Notes
ISO_27001_TR

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

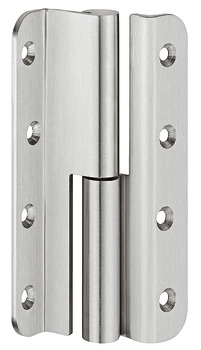

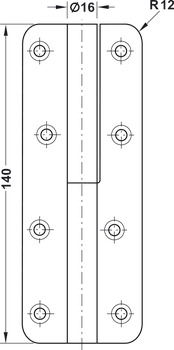

The Butt hinge, for rebated interior doors up to 60 kg - 926.37.403 by Hafele represents a refined fusion of quality and functionality. This hinge features a 16 mm knuckle diameter and a length of 140 mm, crafted from stainless steel. Its matte finish provides an aesthetic appeal while ensuring durability. Designed for doors weighing up to 60 kg, it allows for smooth operation when used with two hinges.

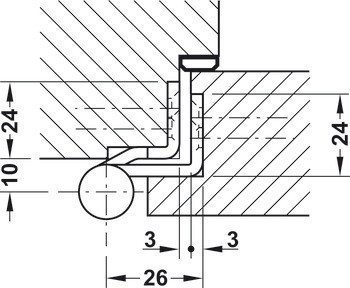

This butt hinge includes a fixed pin and an oil chamber steel bearing system, enhancing the ease of movement. With a routing depth of 3.15 mm and a router bit diameter of 24 mm, installation becomes straightforward. The flange height of 140 mm and flange thickness of 3 mm contribute to its robust structure, while the 12 mm radius ensures compatibility with door frames.

Hafele's butt hinge not only ensures secure door operation but also adds an elegant touch to interiors. Its long-lasting and durable design meets user expectations.
