Drill-in hinge, Triplex 220-3D SM-RA, Anuba, for front doors - 922.62.090 by Hafele — Provides reliability and durability for door installations.

Properties

Product Code: 922.62.090
Category: Drill In Hinges

Material Properties

Used Material:
Steel
Durability:
No Information

Product Attribute Symbols
Dimensions

Length (cm): 13
Width (cm): No Information
Height (cm): No Information
Volume (cm³): 2

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents
  • ISO_27001_TR
  • 922.62.090_Safety notes
  • ISO_9001_ENG
  • ISO_9001_TR
  • Güvenlik Notları--Security Notes
  • ISO_27001_ENG
Images
Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

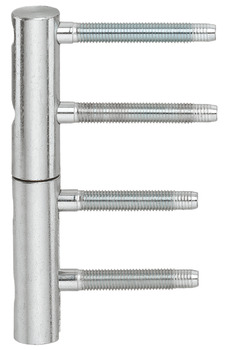

The Drill-in hinge, Triplex 220-3D SM-RA, Anuba, for front doors - 922.62.090 by Hafele represents a refined fusion of quality and functionality. This hinge is designed for both DIN left and DIN right applications, ensuring versatility in installation. Its threaded coupling allows for a permanently straight positioned hinge top part, enhancing stability. With a white and zinc-plated finish, it offers an aesthetic appeal while being made from durable steel material. The hinge features a knuckle diameter of 20 mm, ensuring robust performance and longevity.

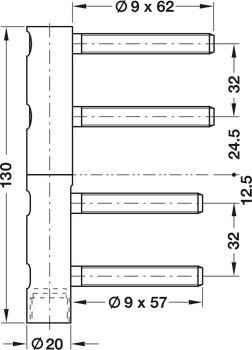

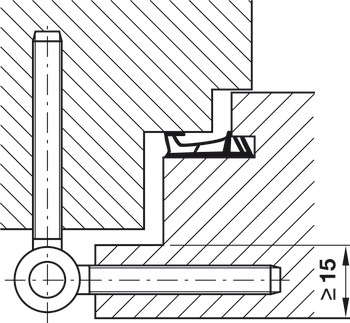

Capable of supporting door weights of up to 120 kg with two hinges and 150 kg with three hinges, this product is ideal for heavy-duty applications. The knuckle length of 130 mm and a drill hole diameter of 8 mm make installation straightforward. Its self-lubricating sintered metal bearing ensures smooth operation, while an optional security pin is available for outward opening doors. The adjustment facilities include side adjustment of ±4 mm, height adjustment of -2/+3 mm, and closing pressure adjustment of ±4 mm, providing flexibility during installation. Certified in compliance with EN 1935:2002, it boasts a quality grade of 3|7|4|0|1|2|0|11.



The Drill-in hinge stands out with its unique features and adaptability, making it an excellent choice for those seeking quality and reliability in door installations.
